SPECIFICATIONS

Adapter Socket: RJ45

Applicable Network Type: Gigabit Ethernet

Application: Laptop

Bluetooth Protocol: No support

Brand Name: UGREEN

Cable: PVC Cable

Cable Length: 10cm

Certification: CE,FCC

Devices-1: Support Laptop / Desktop / PC / Notebook

Devices-2: Support Xiaomi Mi Box / Nintendo Switch / Nintendo Switch Lite

Ethernet Port(1000Mbps Model): Support 1000/100/10Mbps

Frequency: None

Frequency Band Class: None

Function 1: USB RJ45 / USB Lan

Function 2: Support online upgrade

Function 3: Supports full-duplex and half-duplex modes

Function 4: Support cross-detection and auto-calibration of network cables

Function 5: Support WOL, Wake-on-LAN

Function 6: Support IPv4/IPv6/TCP/UDP network transmission protocols

Function 7: Support IEEE802.3/U, 10BASE-T/100BASE-TX/1000BASE-T standard

Heat dissipation: Support

Hign-concerned Chemical: None

Indicator Light: Power supply: green light is always on, transfer data: yellow light is flashing.

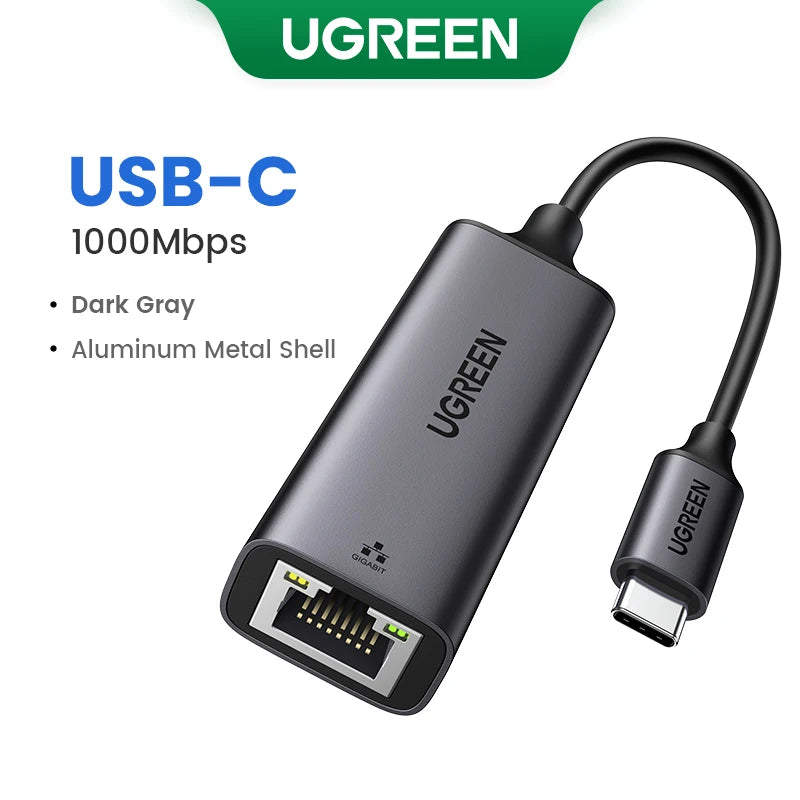

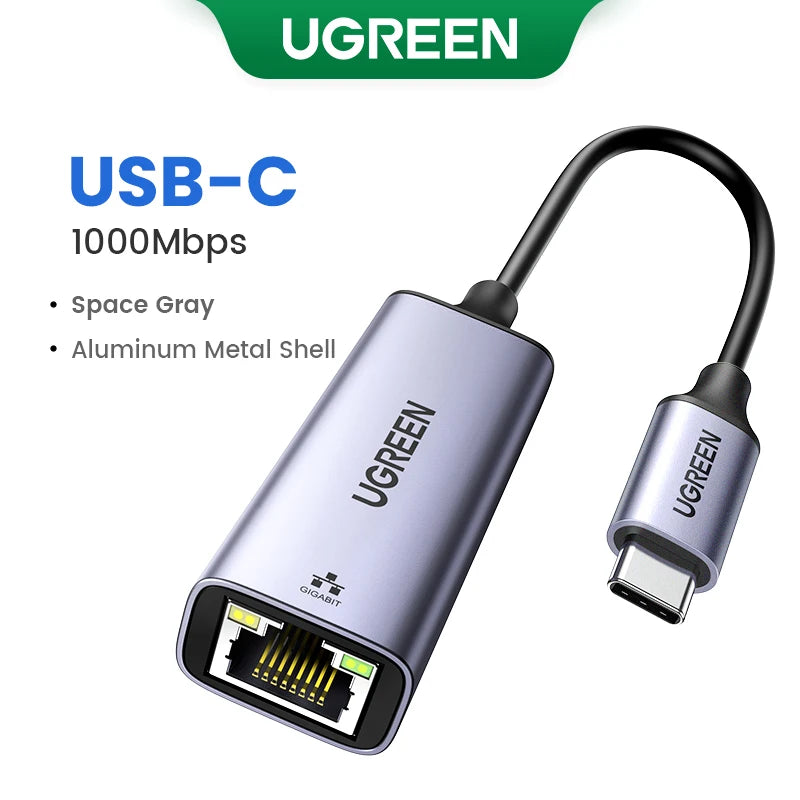

Input: USB-A / USB-C

Interface Type: USB to Ethernet

Kind: External

Lan Transmission Rate: 1000M Ethernet

Material: Aluminum Metal Shell / ABS Shell

Model Name: CM209, etc,.

Model Number: CR111/CR110/CM209

Note-1: OTG Model for Choice

Note-2: 12 models are optional, please place the order according to your needs.

Origin: Mainland China

Output: Ethernet RJ45

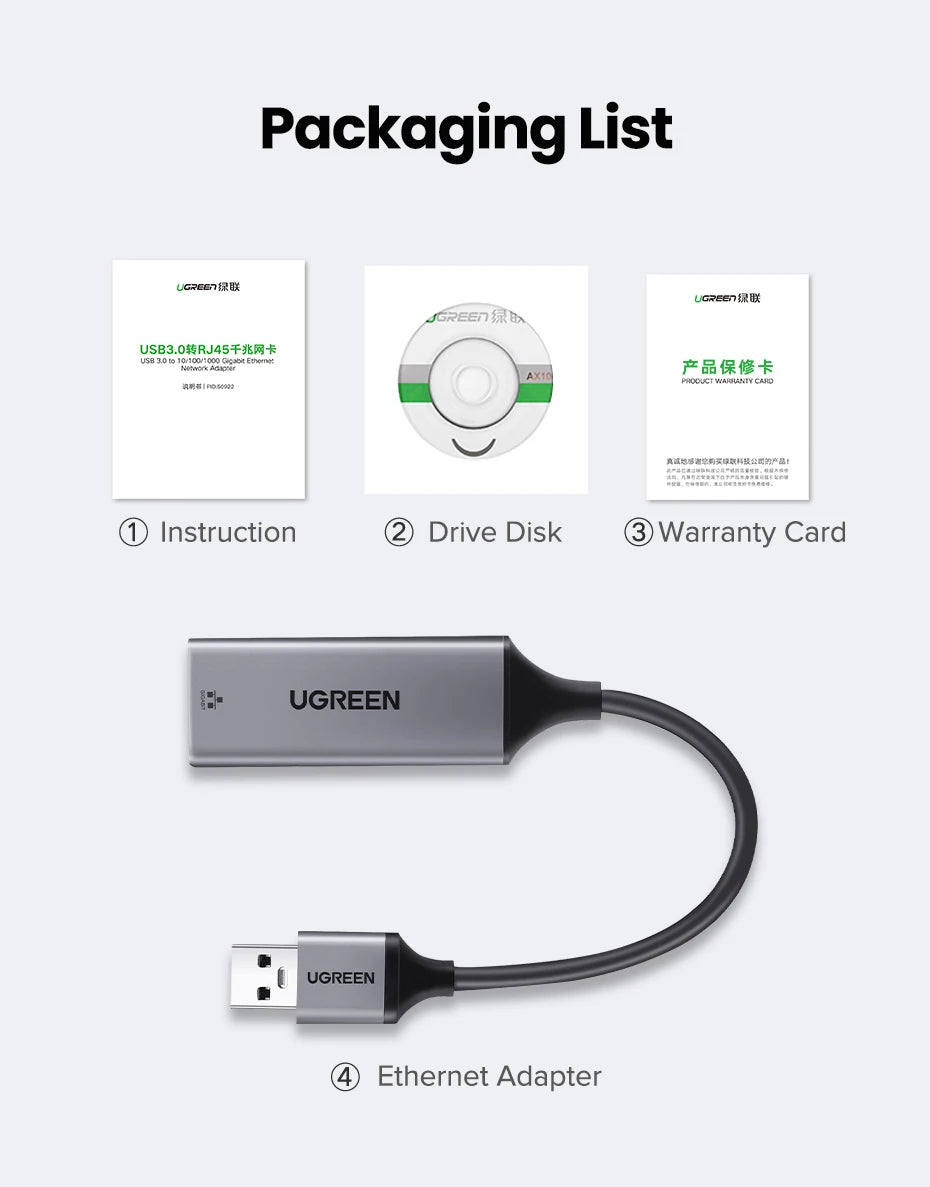

Package: Yes

Product Name: USB Ethernet / USB Ethernet Adapter / Network Card / Network Adapter / Internet Adapter

Systems: Windows / Mac OS / Linux / Chrome OS / iPad OS / Android / iOS, etc.

Transmission Rate: 10/100/1000Mbps

Type: Wired

USB Standard(1000Mbps Model): Support USB3.0 - 5Gbps

Wired Interfaces: RJ45

Wired socket: USB3.0

Wired transmission rate: 1000m

Wireless Communication Standard: None

Wireless socket: None

Wireless transmission rate: None

UGREEN USB 3.0 gigabit 1000/100/10Mbps ethernet network adapter enables you to add a network interface to your computer via USB. It is backward-compatible with all existing 10/100 networks. With it , you could replace a broken internal network card, add a separately routable network interface, and transferring files peer-to-peer over Ethernet. Simply insert the adapter into a USB 3.0 port on your computer and begin to transfer large video, audio, and graphics files between your workstation and the network.

>>>Specifications:

1. USB3.0 to RJ45 adapter supports Gigabit networking over USB 3.0 with up to 5Gbps.

2. Supports suspend mode and remote wakeup via link-up, magic packet, or external pin,USB-Powered.

3. Compatible with Windows 11/10/XP/Vista/7/8, mac OS, Linux, Chrome OS, Nintendo Switch, Xiaomi Mi Box.

4. NOT compatible with other TV boxes except Xiaomi Mi box.When connecting to Mi Box,due to weak power supply,it cannot automatically work after standby for some time,just replug usb network adapter into Mi Box,and it will work.

>>>Note:

1. Plug and Play only for Windows 11/10/8.1/8, mac OS, Chrome OS.

2. Driver needed for Windows7/XP/Vista and Linux systems.

3. Reboot your PC after driver installation,then connect this USB ethernet adapter to your computer and ethernet.

4. Not supported on ARM-based Windows,including Surface RT and Surface 2.

5. Mac System: System Preference--Network--Add a new network connection.

6. Windows 7: Device Manager--USB-AX88179A/AX88772.

7. 1000Mbps ethernet adapter does not support wii u, 100Mbps ethernet adapter supports wii u.

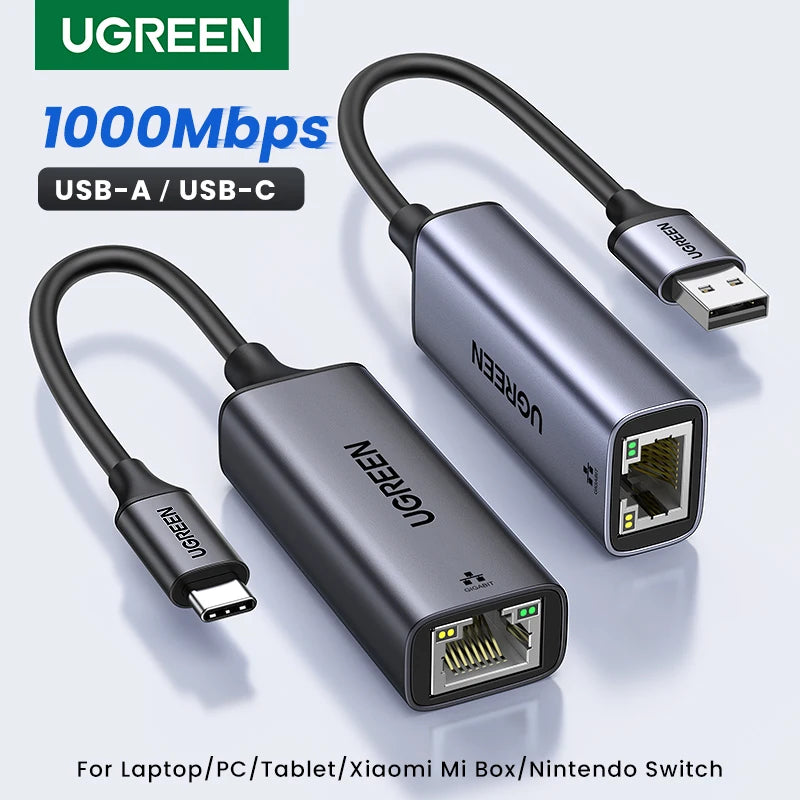

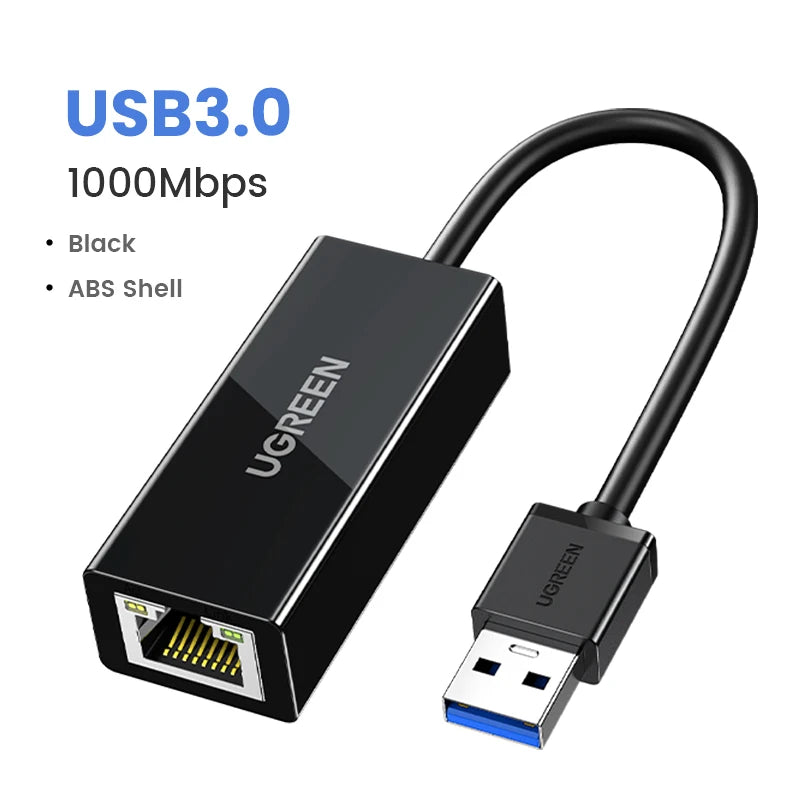

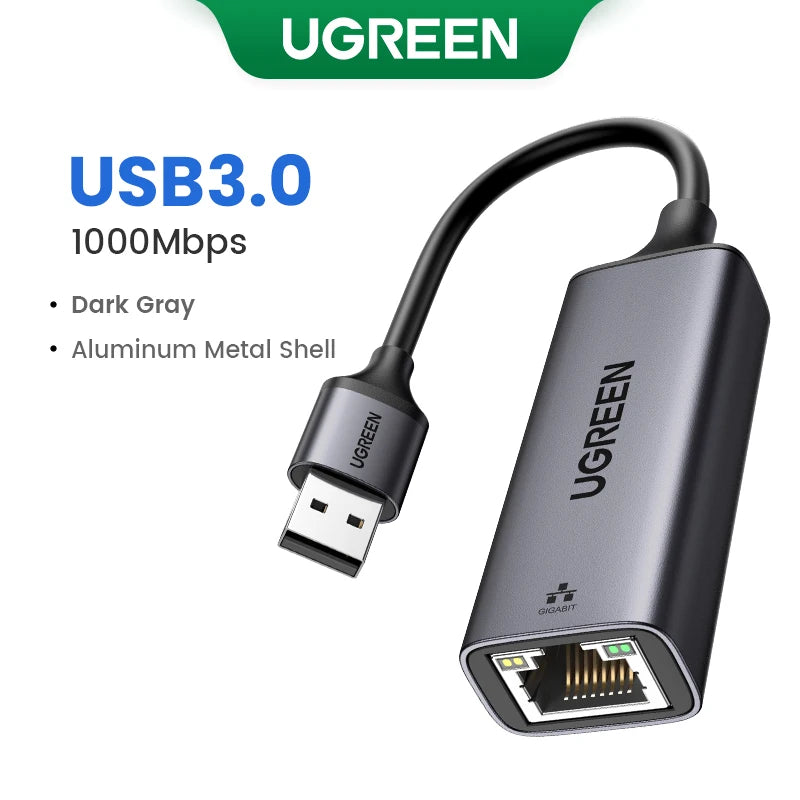

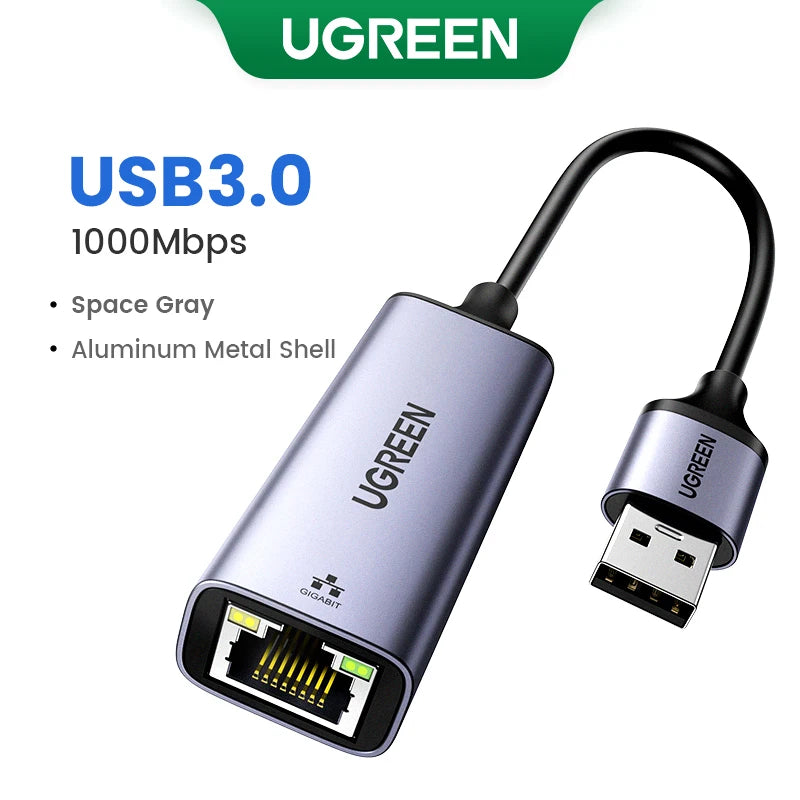

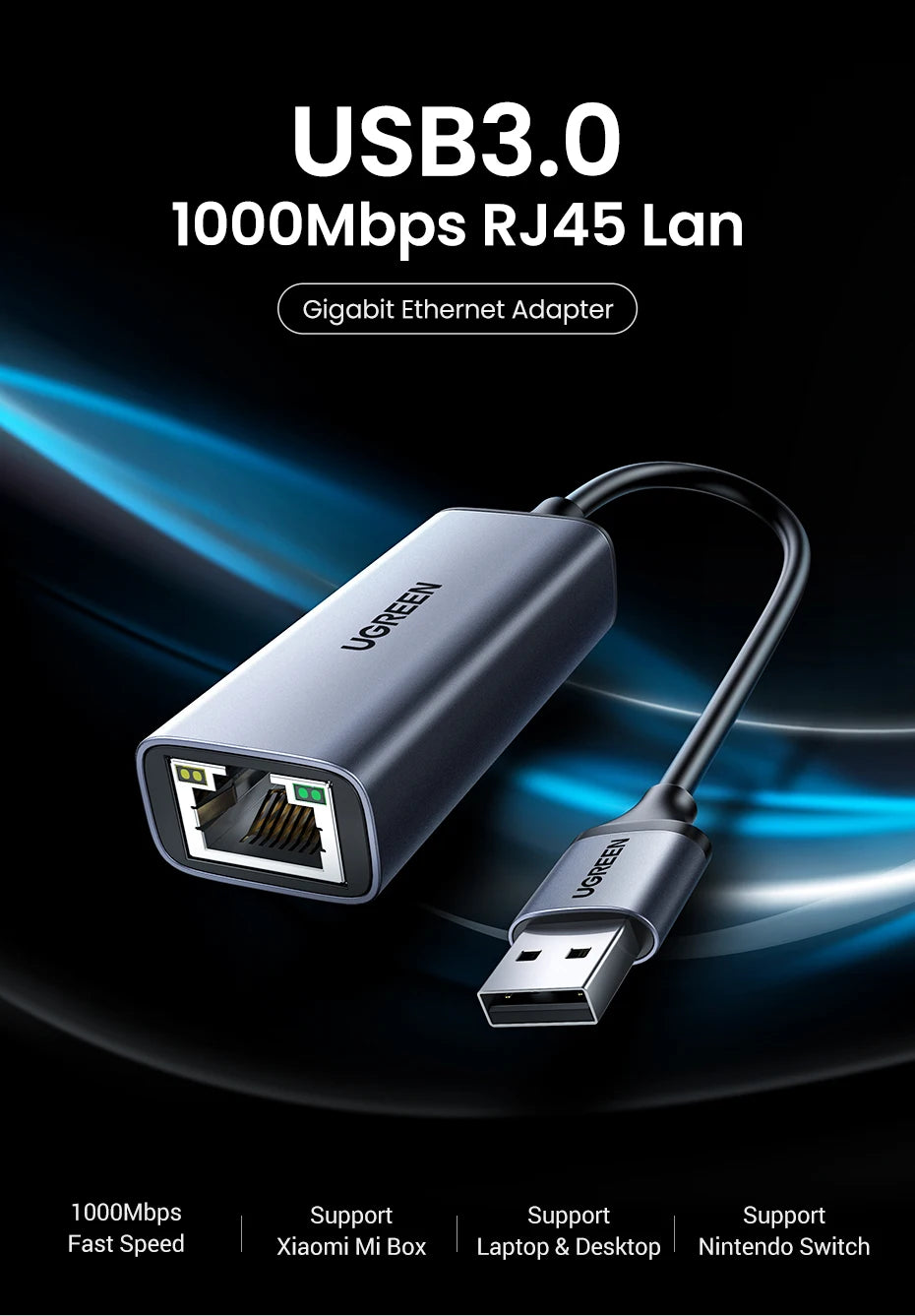

USB3.0 1000Mbps RJ45 Lan

Gigabit Ethernet Adapter

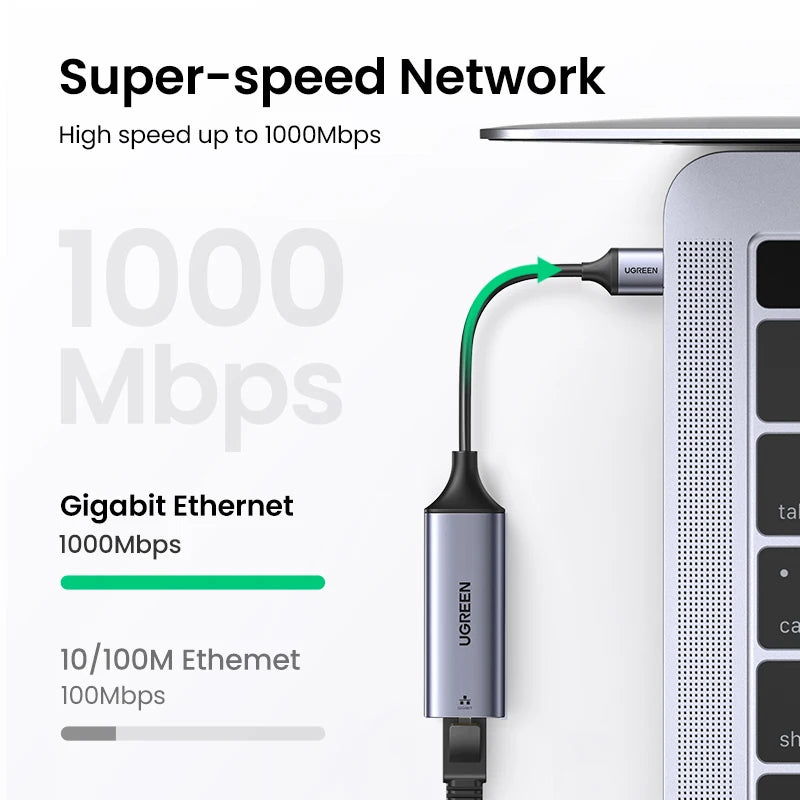

Super-speed Network

High speed up to 1000Mbps

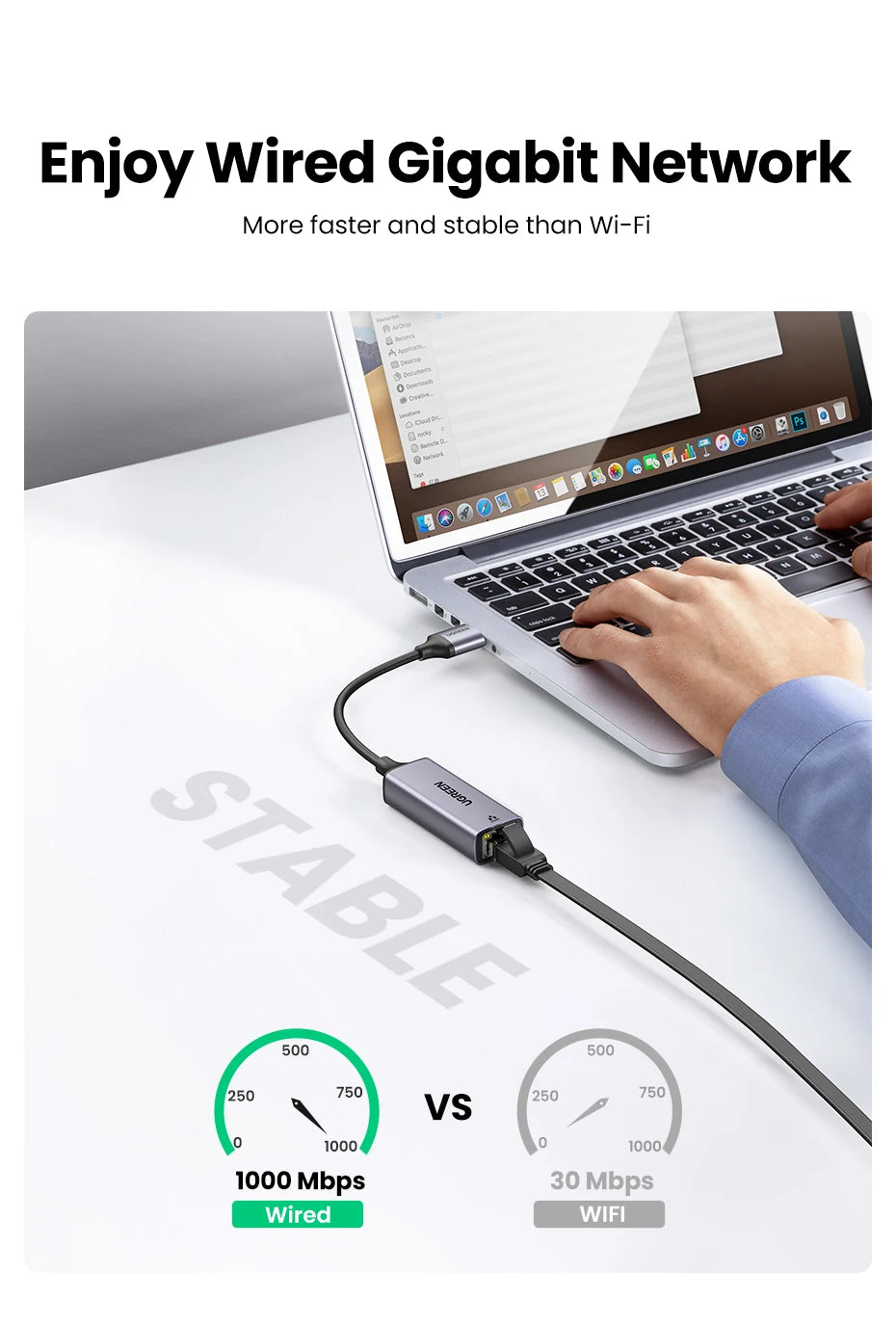

Enjoy Wired Gigabit Network

More faster and stable than Wi-Fi

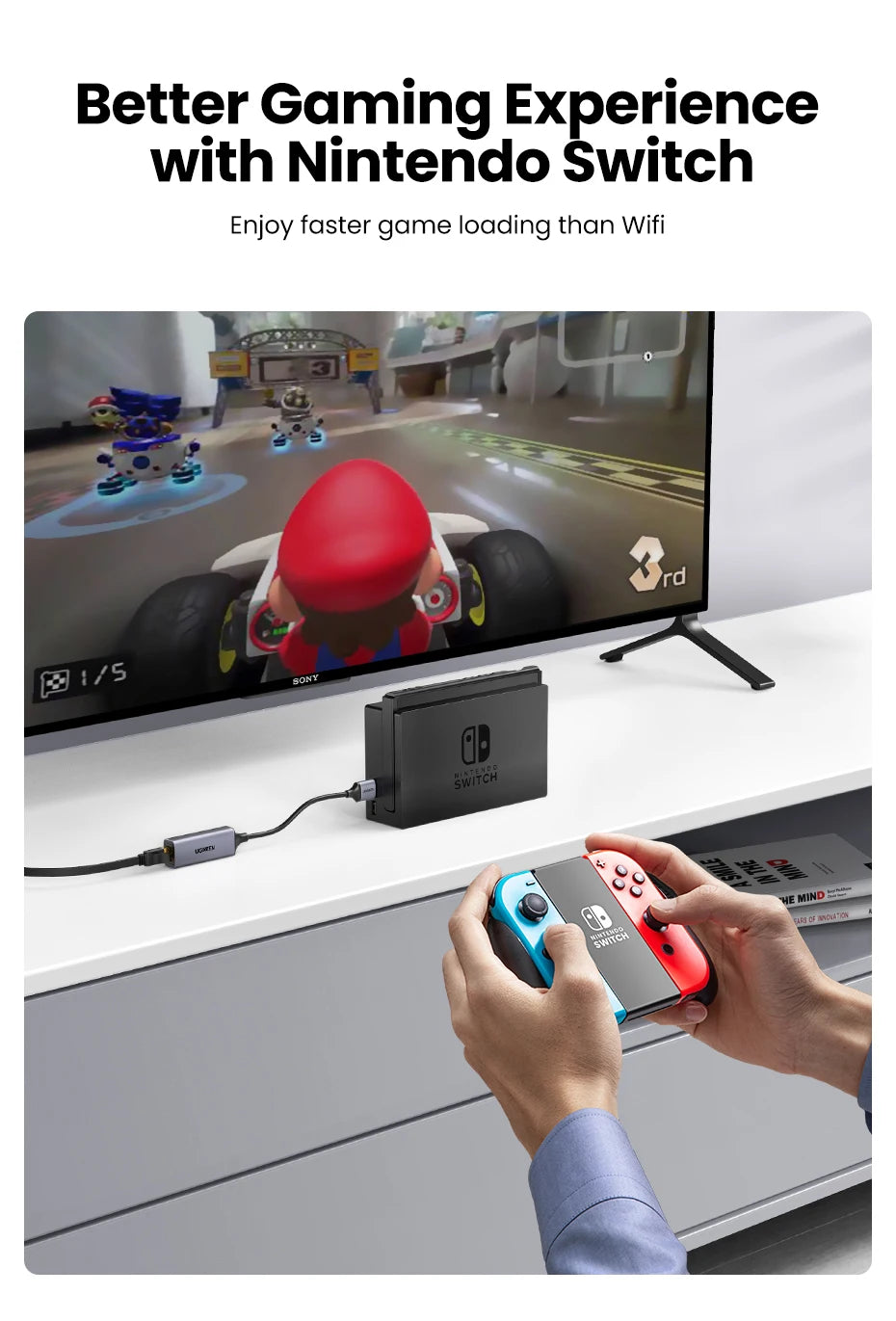

Better Gaming Experience with Nintendo Switch

Enjoy faster game loading than Wifi

Support Xiaomi Mi Box S/4/3/4S/3S

Enjoy wonderful leisure time

Wide Application

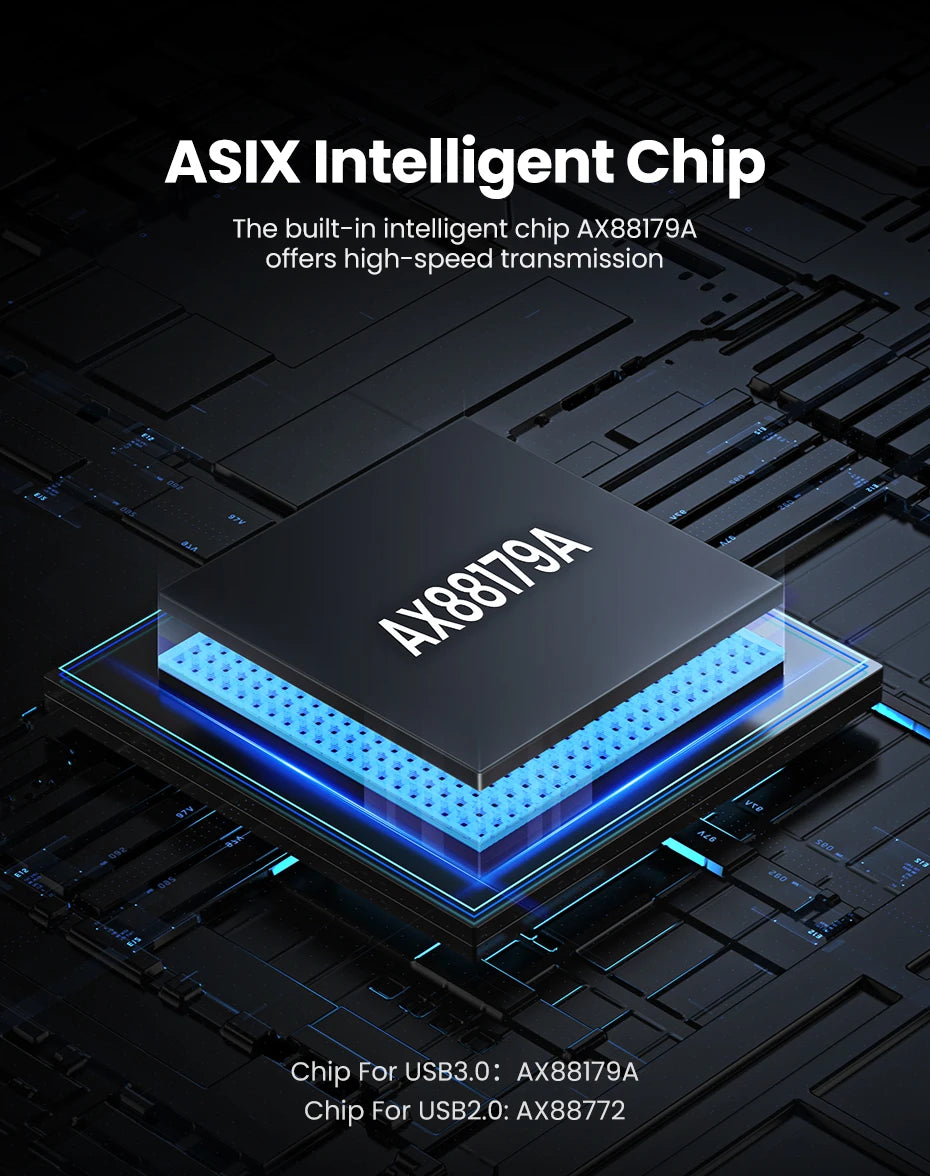

ASIX Intelligent Chip

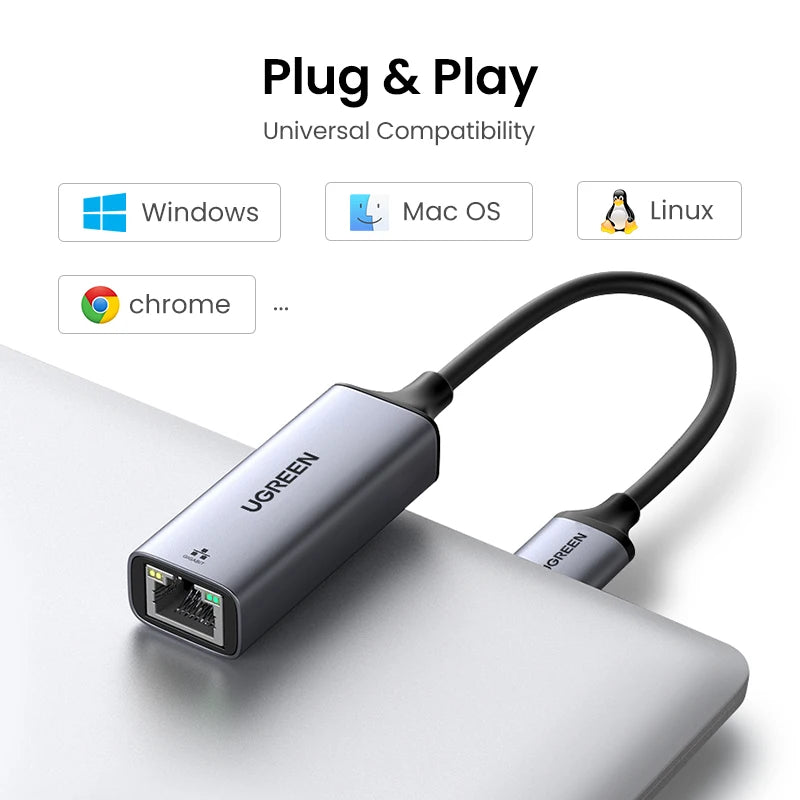

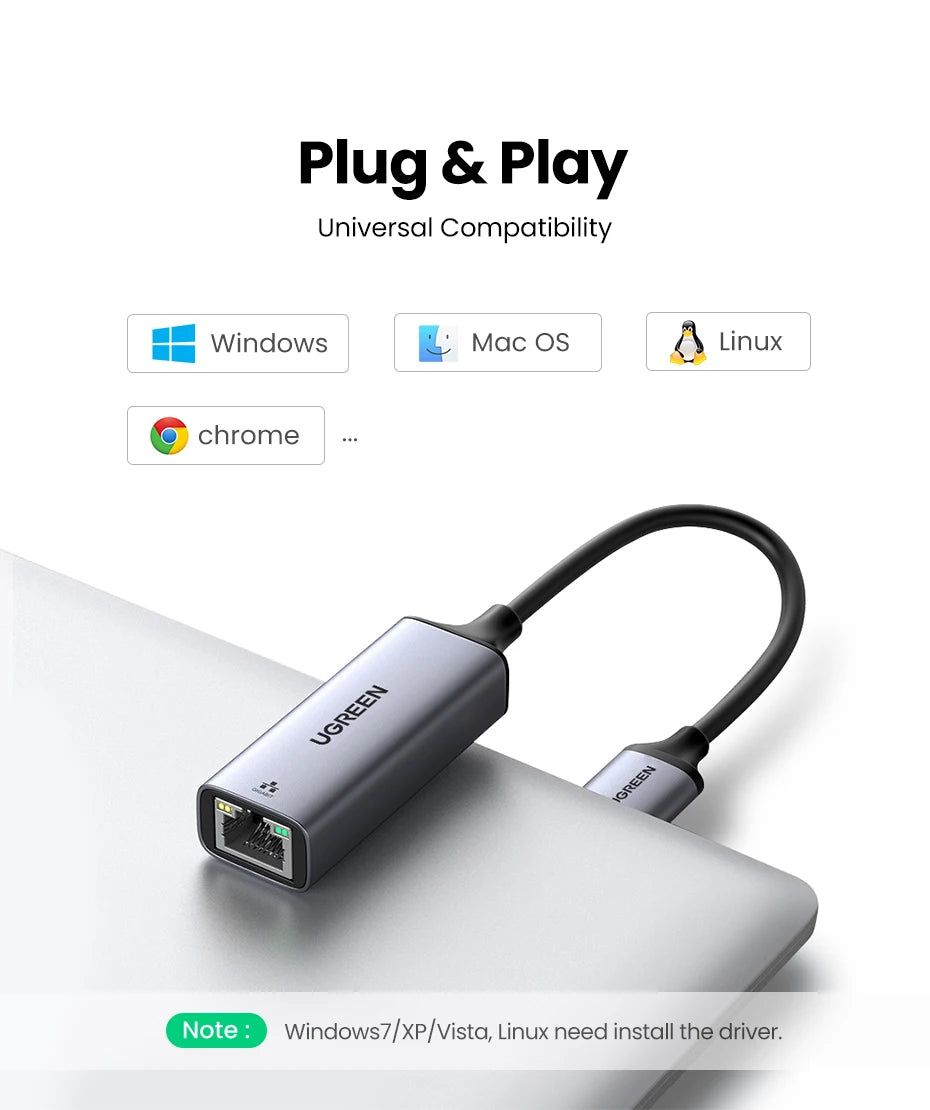

Universal Compatibility

Driver free for Windows 11/10/ 8.1/8, mac OS, Chrome OS

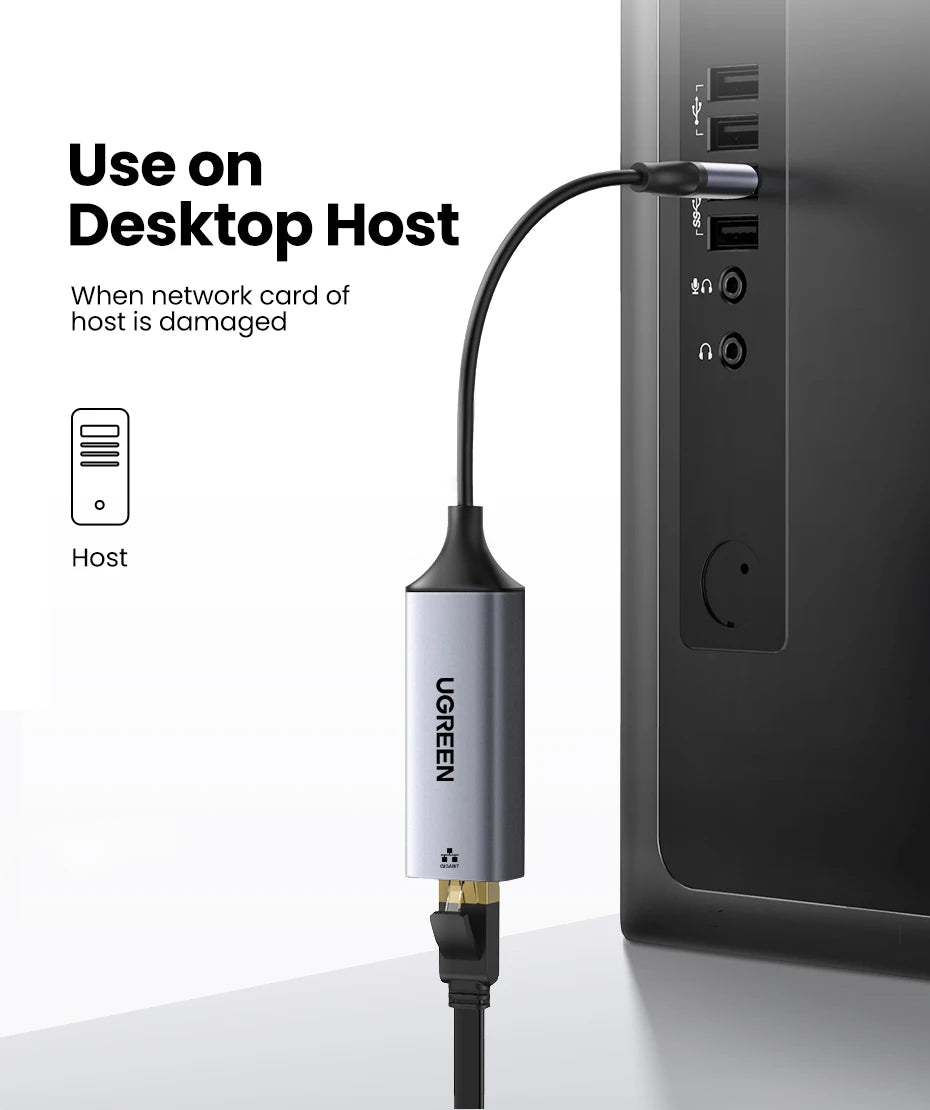

Use on Desktop Host

When network card of host is damaged

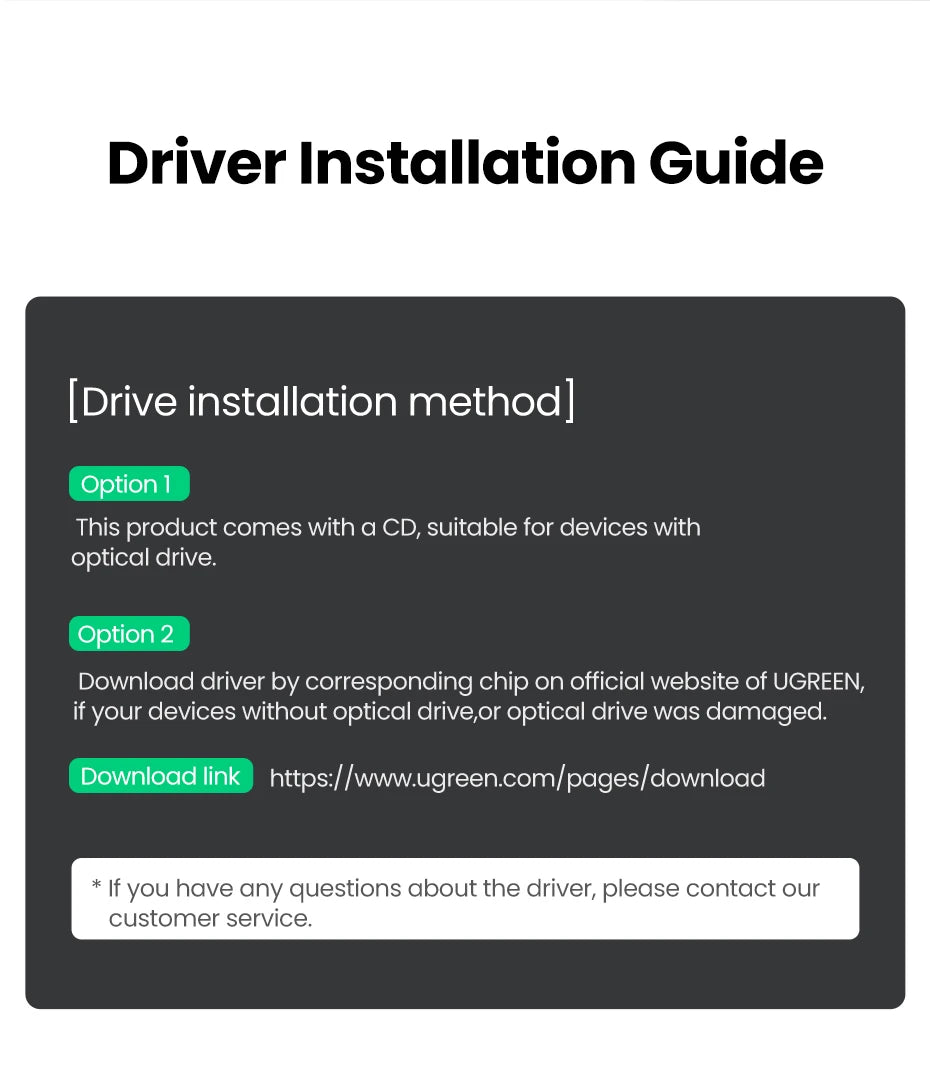

Driver Installation Guide

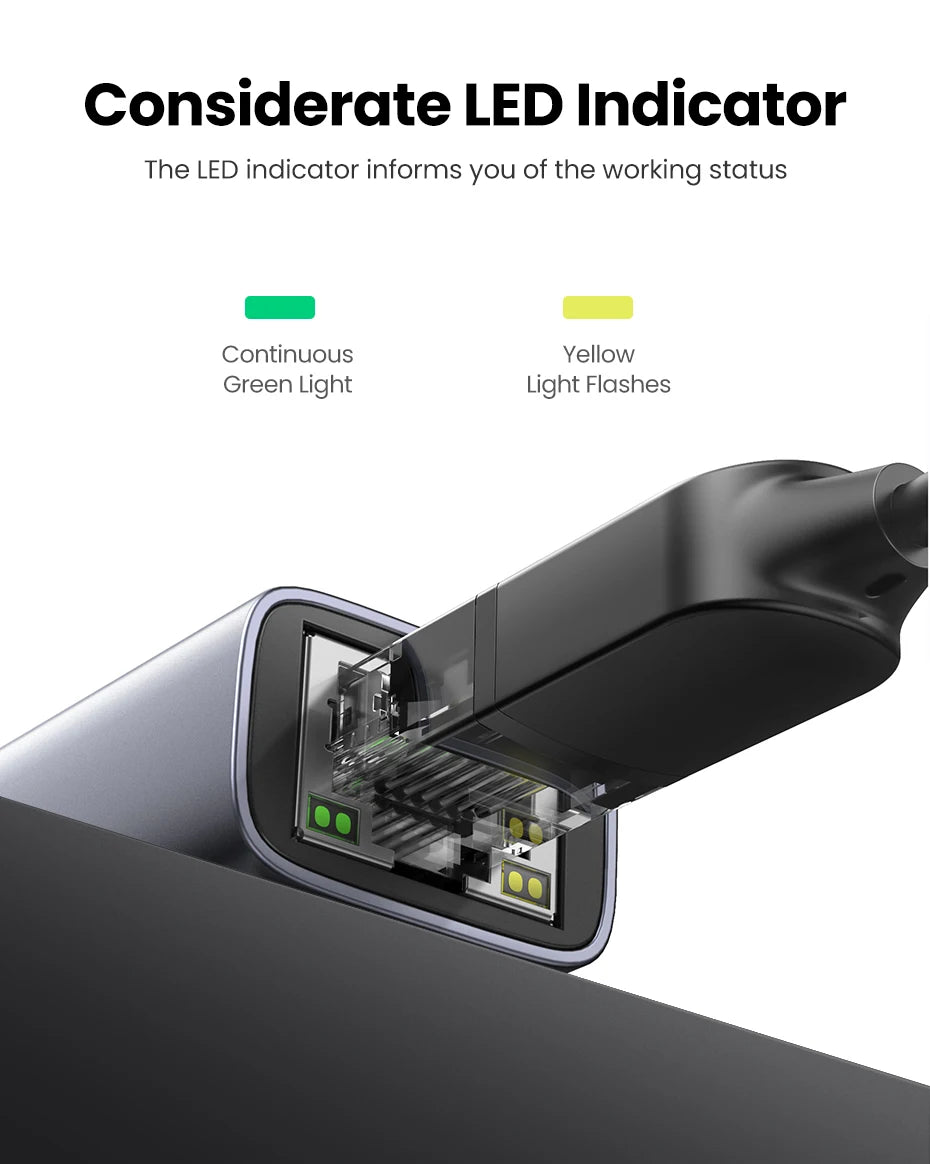

Considerate LED Indicator

The LED indicator informs you of the working status

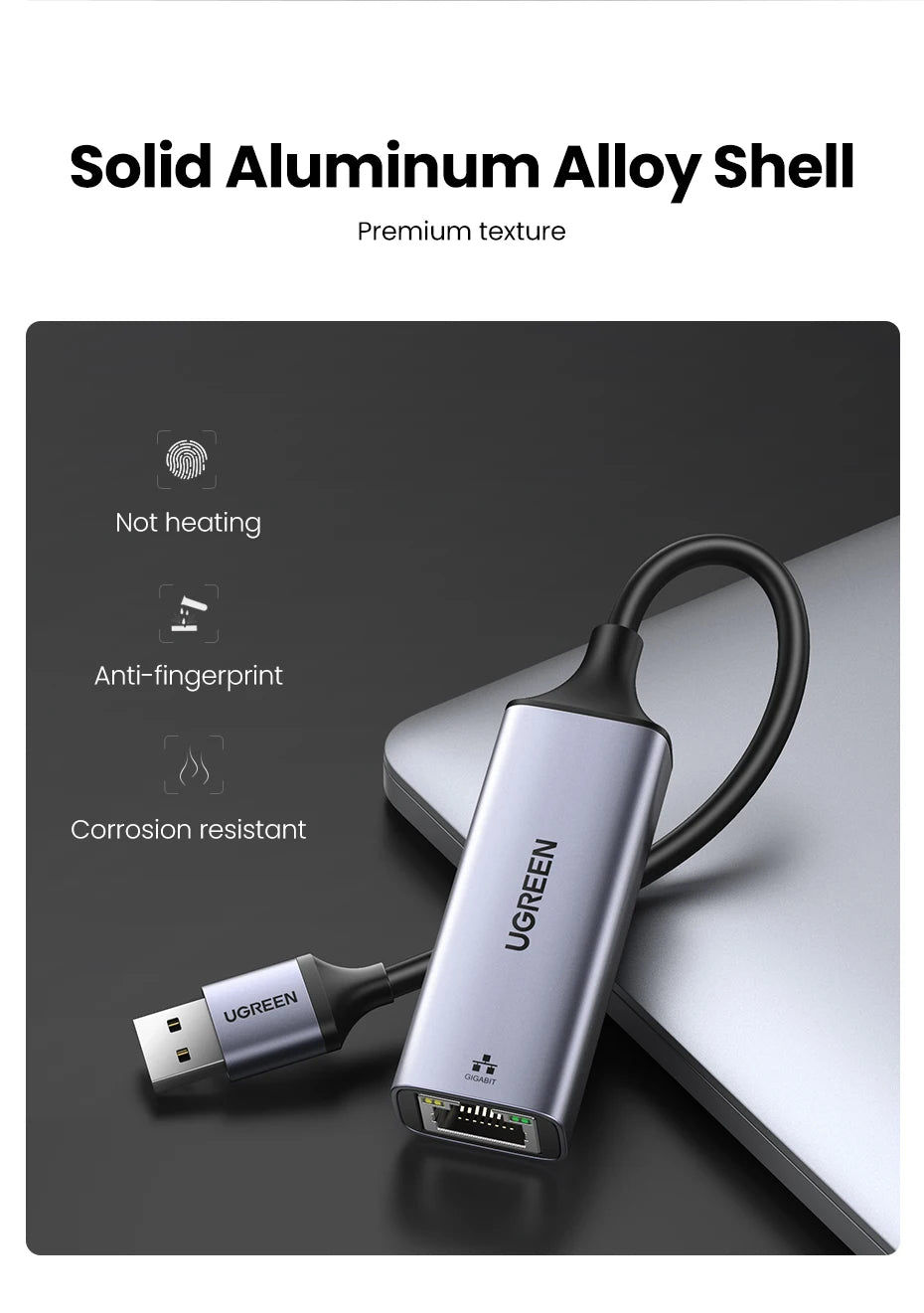

Solid Aluminum Alloy Shell

Premium texture

Lightweight and Portable

Tiny size and compact design, easy to carry

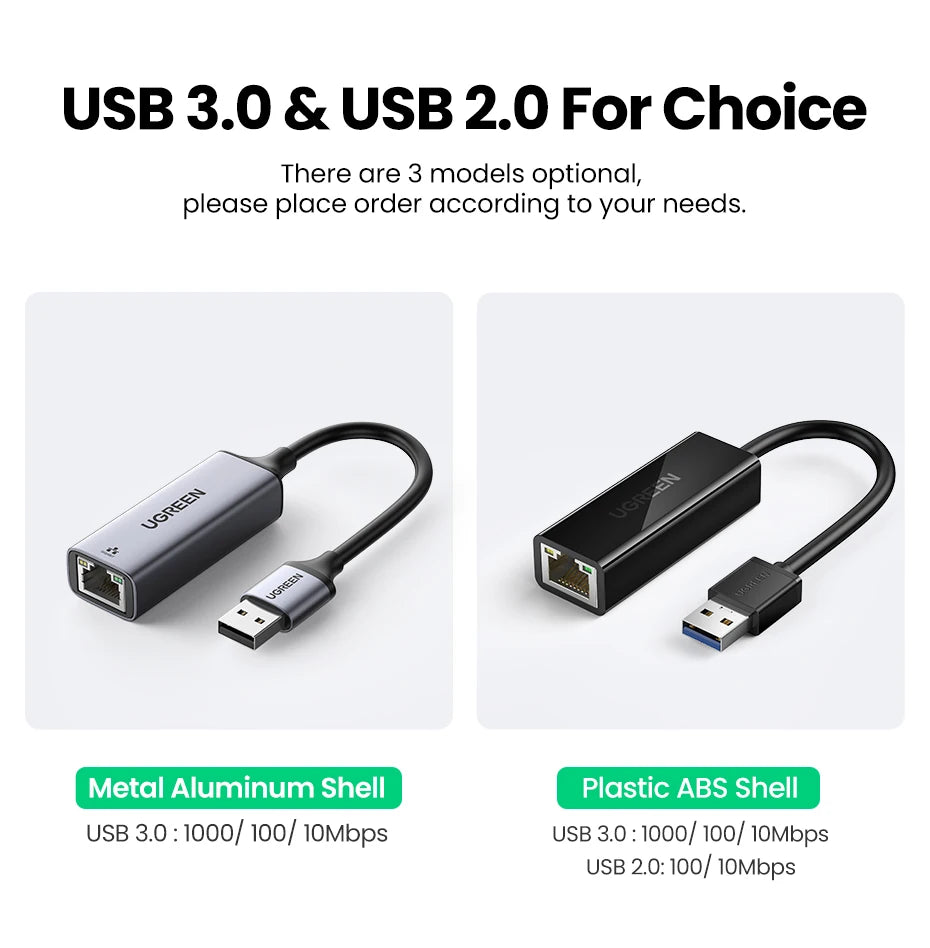

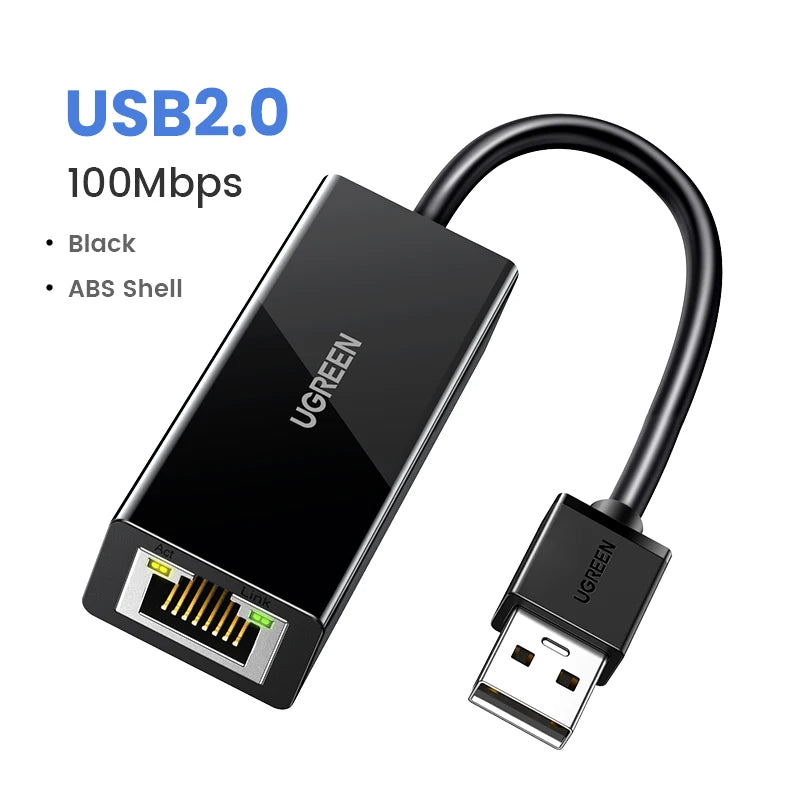

USB 3.0 & USB 2.0 For Choice

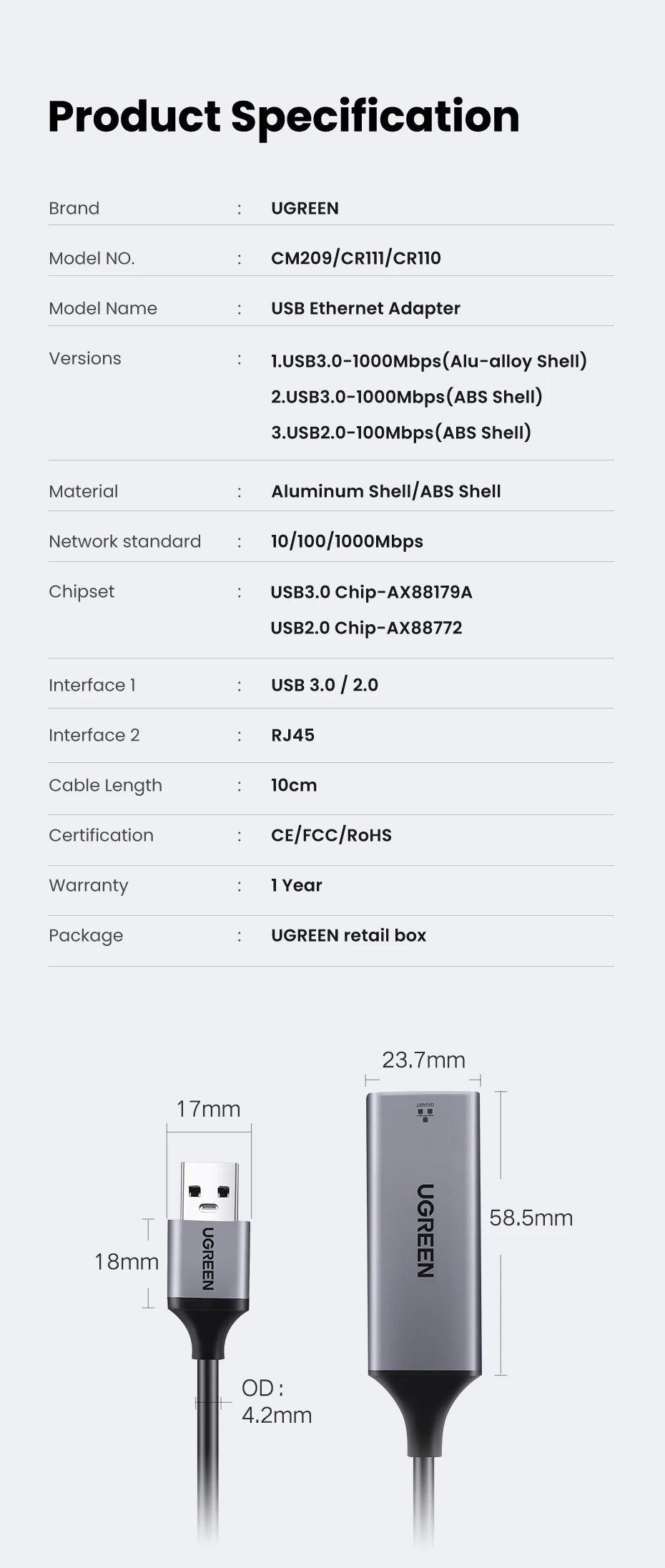

Product Specification
